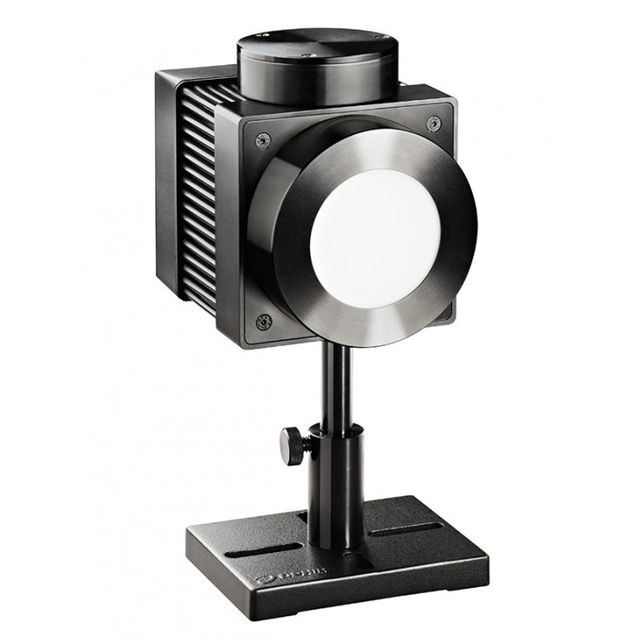

FPE80BF-DIF-C 7Z02950 Pyroelectric Energy Meter

Updated:2025-03-13

Brand：Ophir
Model：FPE80BF-DIF-C
Description: The FPE80BF-DIF-C is a pyroelectric energy meter that can measure high average power pulsed lasers up to 200W. It has a high damage threshold diffuser for concentrated beams. It has a 53mm aperture an
Data download

Feedback
WeChat

QQ

Online Service

Product Details

FPE80BF-DIF-C 7Z02950 Pyroelectric Energy Meter Description：

The FPE80BF-DIF-C is a pyroelectric energy meter that can measure high average power pulsed lasers up to 200W. It has a high damage threshold diffuser for concentrated beams. It has a 53mm aperture and can measure energies from 1mJ up to 40J. It has a damage threshold of 4J/cm2 for ns pulses. It can operate at repetition rates up to 250Hz and covers the spectral range from 0.19 - 2.2, 2.94μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

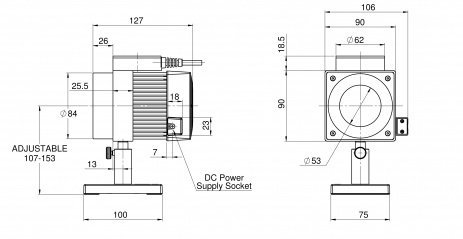

FPE80BF-DIF-C 7Z02950 Pyroelectric Energy Meter Drawing：

FPE80BF-DIF-C Drawing

FPE80BF-DIF-C 7Z02950 Pyroelectric Energy Meter Specifications：

Absorber Type	BF with diffuser
Aperture	?53mm
Spectral Range	0.19-2.2μm, 2.94μm
Energy Range	1mJ-40J
Maximum Frequency	250Hz
Dimensions	90 L x 90 W x 127 D (mm)
Max Pulse Energy	40J
Max Average Power Density	120W/cm2
Max Pulse Width	20 ms
Damage Threshold(for <100ns)	4J/cm2
Damage Threshold(for 2ms)	50J/cm2
Max Average Power	200W
