Uniblitz AI25 Auto Iris

Updated:2025-03-13

Brand: Uniblitz
Model: AI25
Description: The Uniblitz AI25 is a motorized iris diaphragm (auto iris) that allows for the remote control of a variable 25 mm aperture. This electronically-controlled aperture is ideal for remote light attenuati
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Uniblitz AI25 Auto Iris Description：

AI25 and AIC10 Product Overview AI25 Direct Control Guide Datasheet

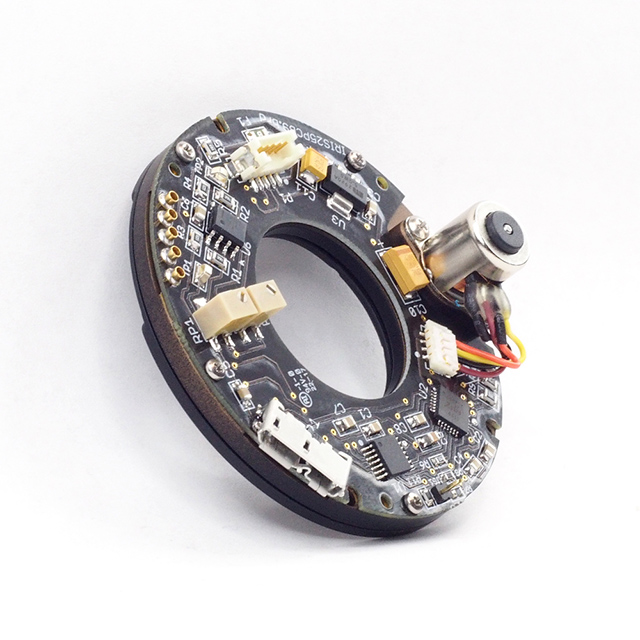

The Uniblitz AI25 is a motorized iris diaphragm (auto iris) that allows for the remote control of a variable 25 mm aperture. This electronically-controlled aperture is ideal for remote light attenuation or depth-of-field control. The iris’s aperture closes down to 1.5 mm, and an optional shutter attachment allows users to fully close the aperture.

The AI25’s low-profile form-factor means that it can be used in applications where spacial limitations are a consideration. An optional housing is available which gives the AI25 a compact package with no externally protruding components and two flat mounting surfaces.

Key Features

Operation Range: 1.5 – 25.0 mm

Closing speed: 0.22 seconds

Resolution (mm/step): 0.44 ± 0.33

Low-profile form-factor

Optional high speed shutter attachment available

Optional iris/shutter housing available

RoHS Compliant

Configured for the AIC10 Iris Controller

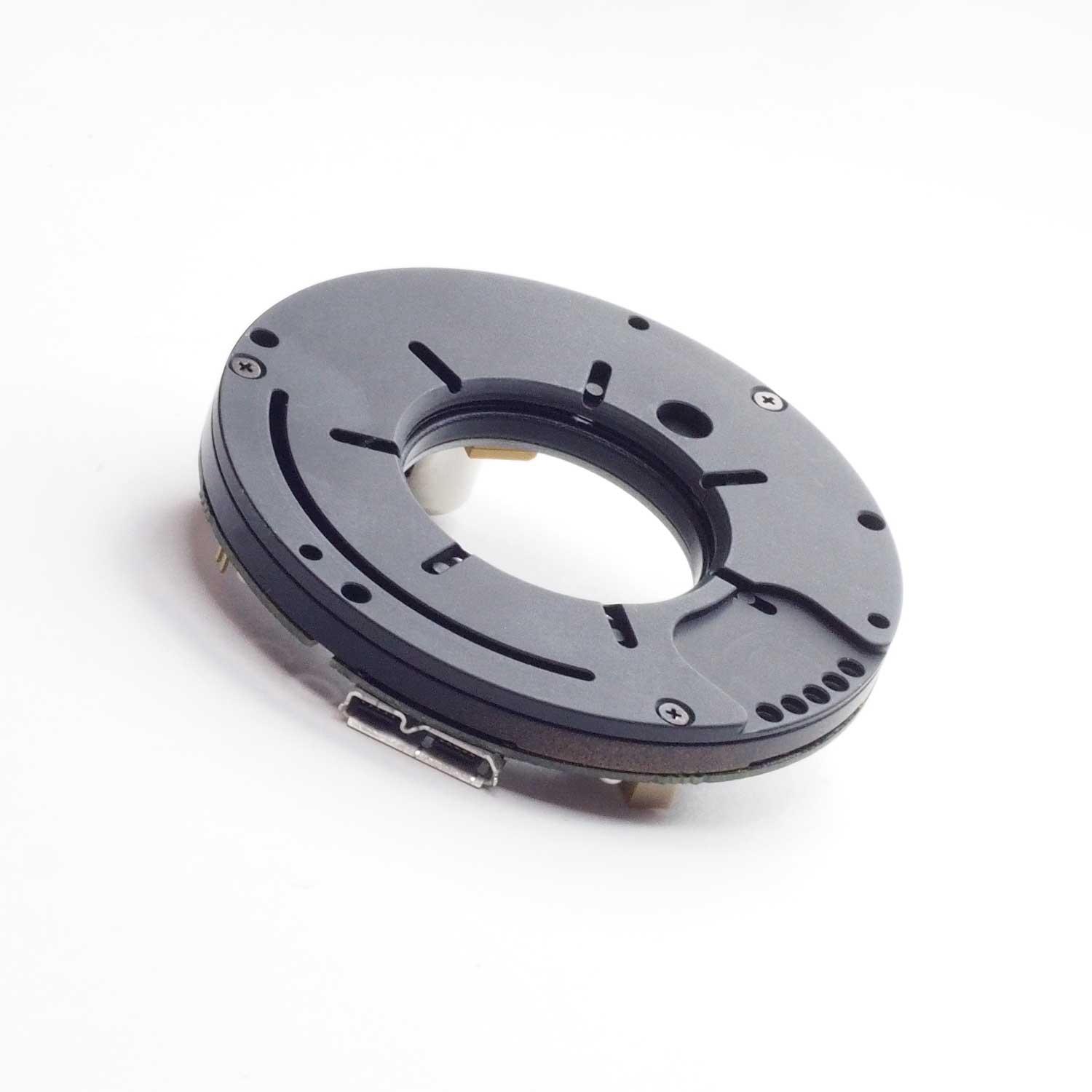

Uniblitz AI25 Motorized Iris Diaphragm (Side)

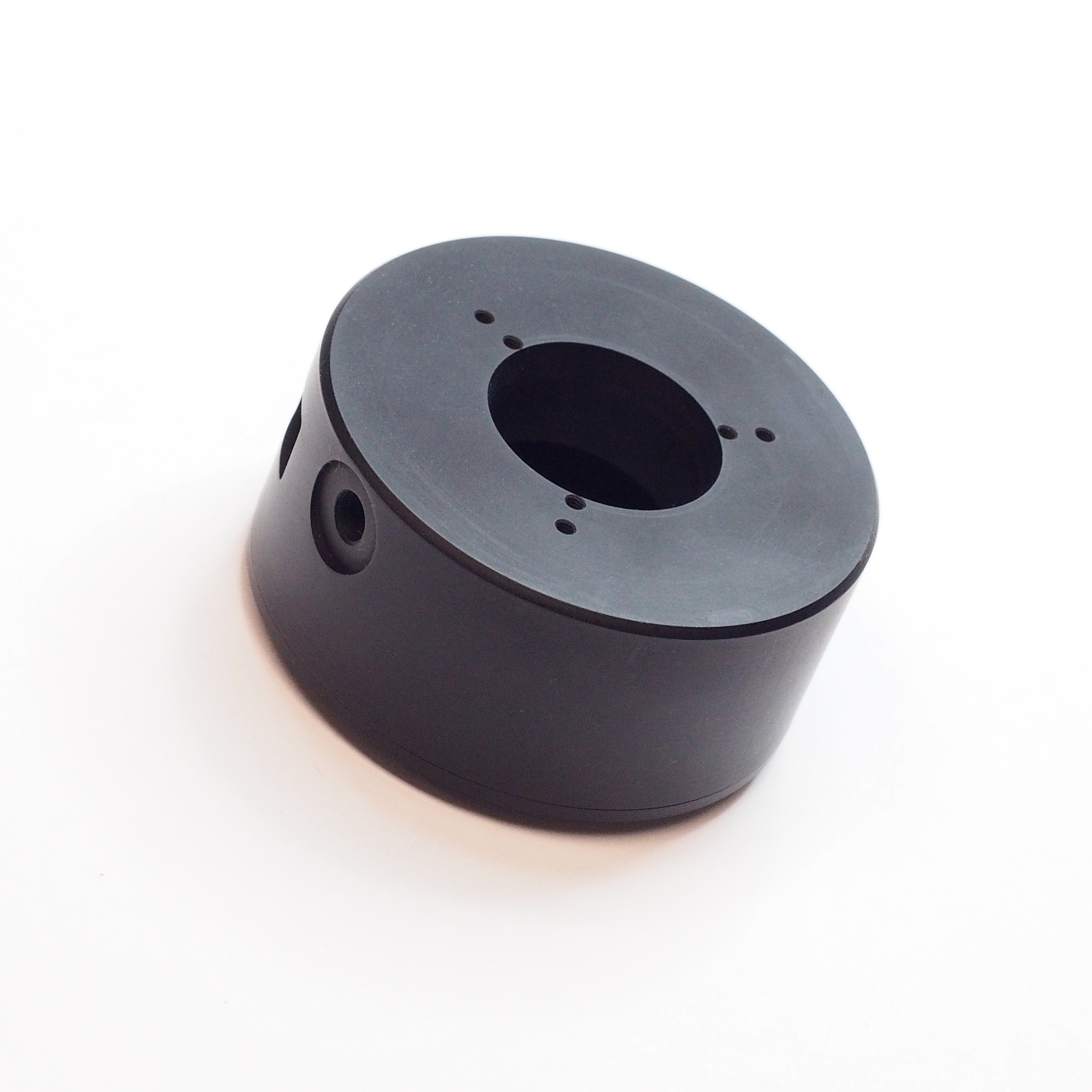

Uniblitz AI25 Motorized Iris Diaphragm (Housed)

Specifications

Weight (Un-housed)	1.31 oz (37.20 g)
Weight(W/ Shutter)	2.00 oz (56.80 g)
Weight(Housed W/ Shutter)	5.82 oz (164.90 g)
Operating Temp.	-10 – +65 °C
Number of Iris Blades	7
Number of Steps	54
Resolution (mm/step)	0.44 ± 0.33
Operation Range (mm)	1.5 – 25.0
Closing Speed (min to max)	0.22 seconds
