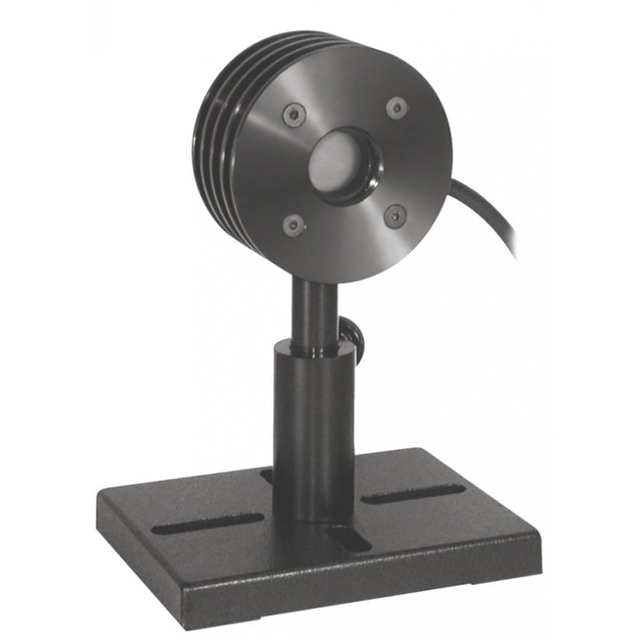

10A-P P/N7Z02649 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: 10A-P
Description: The 10A-P is a thermal power/energy laser measurement sensor for short pulsed lasers with a 16mm aperture. It can measure from 40mW to 10W and from 10mJ to 10J. It has the P type volume absorber and c
Data download

Feedback
WeChat

QQ

Online Service

Product Details

10A-P P/N7Z02649 Laser Measurement Sensor Introduction：

The 10A-P is a thermal power/energy laser measurement sensor for short pulsed lasers with a 16mm aperture. It can measure from 40mW to 10W and from 10mJ to 10J. It has the P type volume absorber and covers the spectral range from 0.15 to 8μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

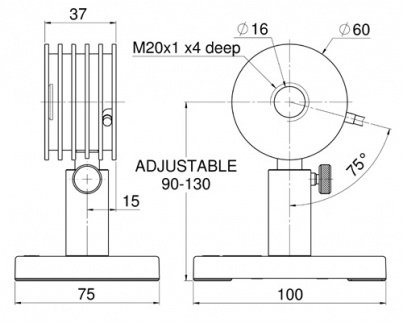

10A-P P/N7Z02649 Laser Measurement Sensor Drawing：

10A-P Drawing

10A-P P/N7Z02649 Laser Measurement Sensor Specification：

Absorber Type	P type
Aperture	?16mm
Spectral Range	0.15-8μm
Power Range	40mW-10W
Energy Range	10mJ-10J
Backscattered Power	N.A.
Dimensions	?60 W x 37 D (mm)
Max Pulse Energy	10J
Max Average Power Density	0.05kW/cm2
Response Time	3.5 s
Max Energy Density (for <100ns)	1J/cm2
Max Energy Density (for 2ms)	1J/cm2
Max Average Power	10W
BeamTrack Functions	N.A.
